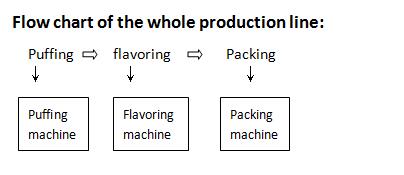

Puffed cereals prodction line
    Publish time 2017-12-13 15:55

Application:
This machine app
ly for puffing corn,wheat,and flavor the cereals.


Section 1:puffing machine

Technical parameter

1. Dimension(mm)L1750×W850×H1350

2.Electricity Connection220/380V

3.Power0.75KW

4.Material inlet6~8 kg/batch

5.Puffing period10 min/batch (varies for different materials)

6. Puffing pressure0.4-1.2 Mpa(varies for different materials)

7. Weight:450 kg

8.Material of tank: whole piece casted steel,not welded.

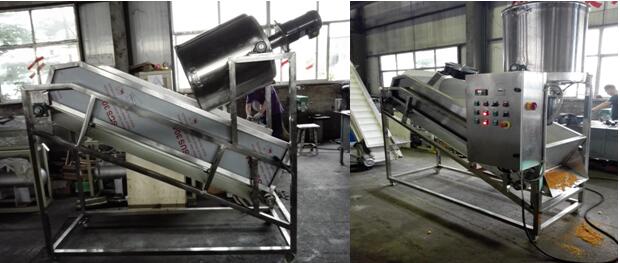

Section 2: flavoring system

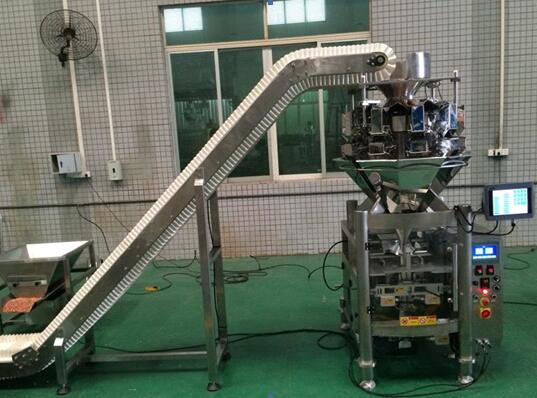

Section 3:packing machine


Technical Parameters



Size

10.4 inch touch screen

Weigh Head Nos.

10

Weigh Volume

1L

Hopper material

304 stainless steel(a=plain,b=dimpled)

Single Weighing Range

10-1000g

Max. weight

1000g

Weighing accuracy

0.5g-1.5g

Max width of roll film

400mm

Bag width

60~190mm

Bag length

50~230mm

Packaging film materials

Complex film

Film Drive Power

Servo Motor

End Seal Power

Cylinder

Air consumption

0.3m³/min,0.6MPa

Max.Packing Speed

60 bags/min

Power

4KW

Frequency/Voltage

220V 50/60Hz(alternative)

NW. / GW.

550kg/750kg

Package size/mm

1530*1300*2300

* Note: The actual weighing & packing speed will be subject to various kinds of factors,

like the product features,bag-making size, packing materials and filling speed, etc.
