Puffed Rice Cake Molding line
    Publish time 2017-12-13 16:04

Application:
It's a whole line for processing puffed cereal cake from A to Z.

Puffed rice Cake Molding line(2000-5000KGS/8h)

Flow chart :
puffing --boil sugar--mixing--moulding--packing

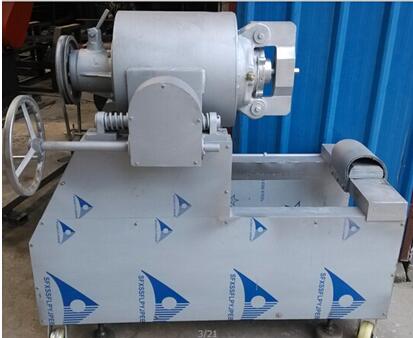

Section 1:Puffed Rice machine

Technical parameters

Voltage380v

Capacity50kg/h

Power:0.75KW

Weight450KG

Size: 1650*800*1350mm

Product description

Purpose:Used for puffing the rice,corn,wheat,barley,beans and other foods

Characteristics:

1.Easy operation,power saved,save times and high production.

2.With seismic thermometer and equipment tank gauge,automatic measurement of the temperature and pressure

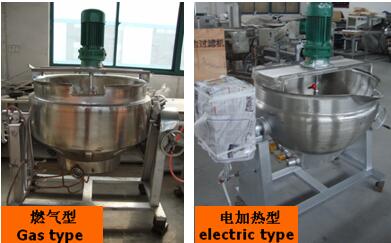

Section 2:100L Sugar Jacket Cooker



Product description

PurposeJacket cooker widely used in candy, pharmacy, dairy products, alcohol, pastry, beverage, honey, line, canned food processing, also can used for large restaurants or dining room boil soup, stew, cooking porridge, etc, it is food processing, improve product quality, shorten the time, improve working conditions good equipment.

Characteristics

Heated area is big, high thermal efficiency, heating uniform, liquid material boiling time is short, the heating temperature easy control etc. Characteristics.

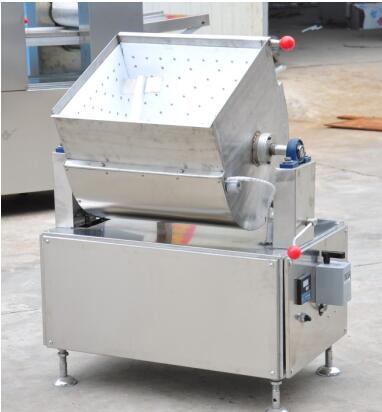

Section3:MIXER



Technical parameters

Voltage380v/50Hz

Production capacity10-15kg/batch

Power:1.1KW

Weight110KG

Size: 800*900*1200mm

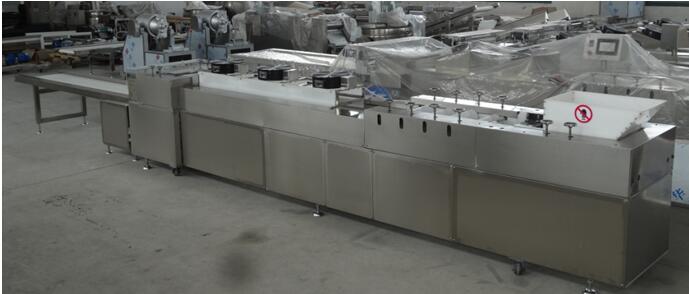

Section 4:PUFFED RICE CAKE MOULING MACHINE

Technical parameters

Voltage380v/50Hz

Production capacity2-5T/8h

Power:2.2KW

Weight1200KG

Dimension10800*1200*1200mm
