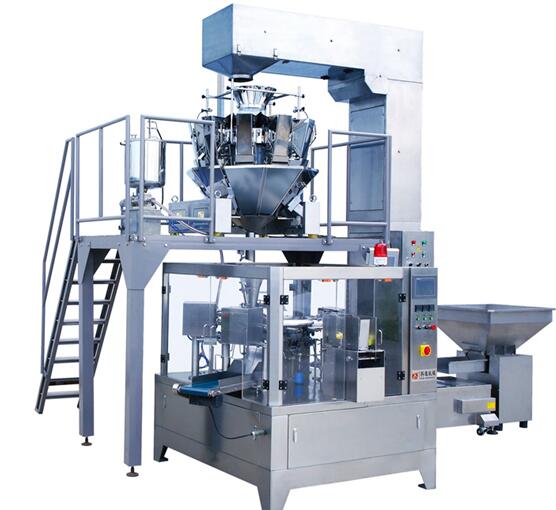

Microwave popcorn packing machine
Publish time 2017-12-13 16:17
Application
It is specialized in the microwave popcorn, which includes the special microwave popcorn rotary packing machine, Multi-head Weigher, Bucket Elevator, Liquid&Paste Filler and Working Platform.
Function and Characteristics
1.Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3.Safty device: Machine stop at abnormal air pressure, heater disconnection alarm。Automatic Folding-bag Function: It could do folding bags automatically, and match to the next packing procedure.
4.Automatic Folding-bag Function: It could do folding bags automatically, and match to the next packing procedure.
5.The part where touch to the material is made of stainless steel.
Paramenters
Working position: Six-working position

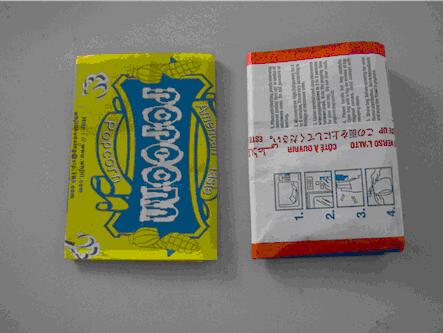

pouch pattern:Special microwave popcorn bag
Pouch size: W:100-210mm L:100-350mm
Filling rane:10-1000g
Weighing range:±0.5-1.5g
Speed: 10-45Bags / min（Rate from the product itself and the filling weight of decision)
Total Power: 380V 3phase 50HZ/60HZ
Voltage:4.5KW
Compress air: Each 0.6 cubic meters (Supplied by user)
1.Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3.Safty device: Machine stop at abnormal air pressure, heater disconnection alarm。Automatic Folding-bag Function: It could do folding bags automatically, and match to the next packing procedure.
4.Automatic Folding-bag Function: It could do folding bags automatically, and match to the next packing procedure.
5.The part where touch to the material is made of stainless steel.
Paramenters
Working position: Six-working position
pouch pattern:Special microwave popcorn bag
Pouch size: W:100-210mm L:100-350mm
Filling rane:10-1000g
Weighing range:±0.5-1.5g
Speed: 10-45Bags / min（Rate from the product itself and the filling weight of decision)
Total Power: 380V 3phase 50HZ/60HZ
Voltage:4.5KW
Compress air: Each 0.6 cubic meters (Supplied by user)
