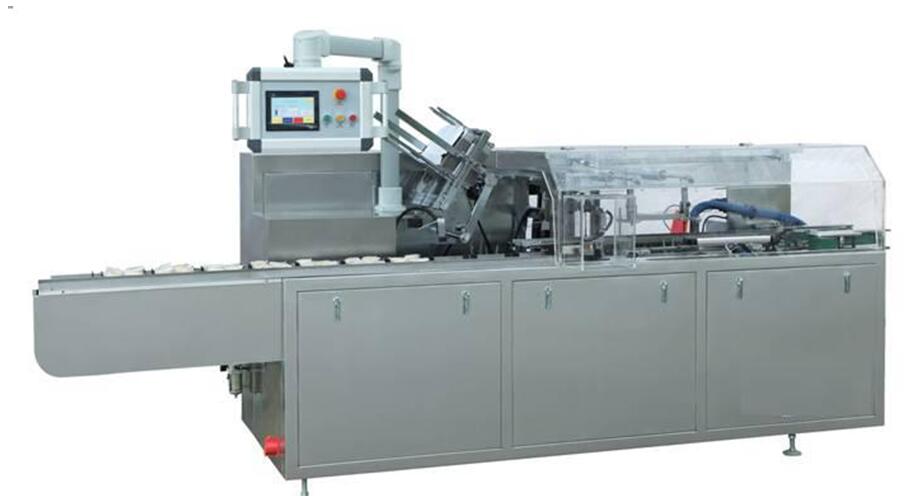

Horizontal Cartoning Machine
Publish time 2017-12-13 16:36
Application:
This machine is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for inserting tissue, pillow wrapped products, pharmaceutical products and food similar package into carton in a range. The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes canton suction and open, products put into, printing batch number, sealing carton with tuck-in or hot melt glue device.
Description
This machine is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for inserting tissue, pillow wrapped products, pharmaceutical products and food similar package into carton in a range. The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes canton suction and open, products put into, printing batch number, sealing carton with tuck-in or hot melt glue device.
Parameters
Dimensions :3300×1350×1650(L×W×H)mm
Weight :1200kg
Output & Speed:40cartons/min
Carton Grammage:Between( 350-400)g/m2
Standard power supply:380V / 50Hz three phase
Power consumption:1.5kw
Air consumption:120-160L/min
Compressed Air Pressure:0.5-0.8MPa
Noise:＜80 dB
Functions and Options
l The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum. The suck carton device use opposite pull carton which make carton suck very steady
l No suction carton by missing product
l Product will be manually loaded on conveyer by manual, then other things finished automatically.
l Automatically displaying device for trouble, speed and finished products counting
l Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return
l Adopt human-machine operation system.
l International famous brand of electric components such for PLC touch screen, frequency inverters, etc
l Stable performance, operation is easy Controls
This machine is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for inserting tissue, pillow wrapped products, pharmaceutical products and food similar package into carton in a range. The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes canton suction and open, products put into, printing batch number, sealing carton with tuck-in or hot melt glue device.
Parameters
Dimensions :3300×1350×1650(L×W×H)mm
Weight :1200kg
Output & Speed:40cartons/min
Carton Grammage:Between( 350-400)g/m2
Standard power supply:380V / 50Hz three phase
Power consumption:1.5kw
Air consumption:120-160L/min
Compressed Air Pressure:0.5-0.8MPa
Noise:＜80 dB
Functions and Options
l The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum. The suck carton device use opposite pull carton which make carton suck very steady
l No suction carton by missing product
l Product will be manually loaded on conveyer by manual, then other things finished automatically.
l Automatically displaying device for trouble, speed and finished products counting
l Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return
l Adopt human-machine operation system.
l International famous brand of electric components such for PLC touch screen, frequency inverters, etc
l Stable performance, operation is easy Controls
