Automatic Soft Tube Filling and Sealing Machine
    Publish time 2017-12-15 10:34

Application:

Packaging materials and filling materials Scope:

1) soft tube, plastic pipe, composite pipe.

2) shoe polish,ointment, cream, gel viscosity fluids agents.

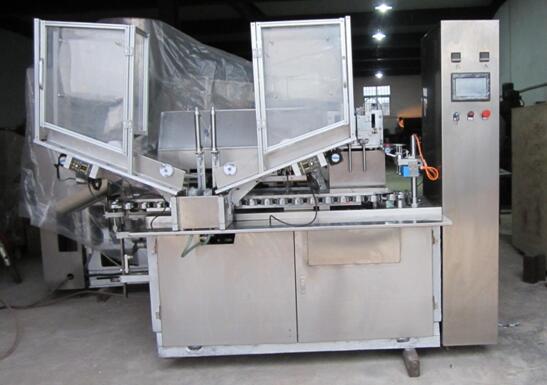

Automatic Soft Tube Filling and Sealing Machine

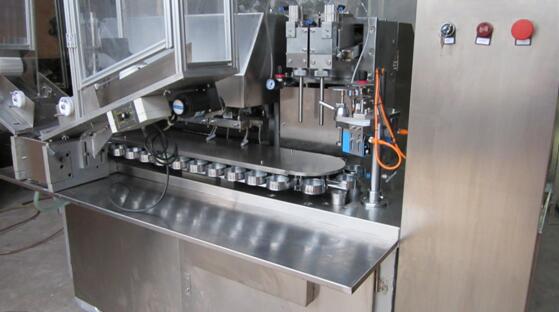

                                                             Automatic Soft Tube Filling and Sealing Machine
Work procedure
Automatic tube feeding→ tube position (hose container) → automatic identification label located on pipe →  filling quantity control test +  [hose internal cleansing (option)] → filling → heating the tube (inner heating for plastic tube, outer heating for compound tube) → tail shaping and sealing → tail cutting → Print → finished discharge code

Parameters
Voltage:220V/380v/50Hz/60Hz
Productivity:80-100pcs/min
Filling volume:5-250 ml(customized)
Tube diameter:11-38mm(customized)
Tube length:50-200mm(customized)
Max power:7.5KW
Water consumption:3-6L/min
Machine weight:About 1300kg
Dimension(L*W*H):2150×850×2100mm
