Rotary Cup Filling Sealing Packing Machine
    Publish time 2017-12-15 13:43

Application:

It applies for filling water,drink,podwer,yoghourt,cereals into plastic cups and then sealing,coding,capping.

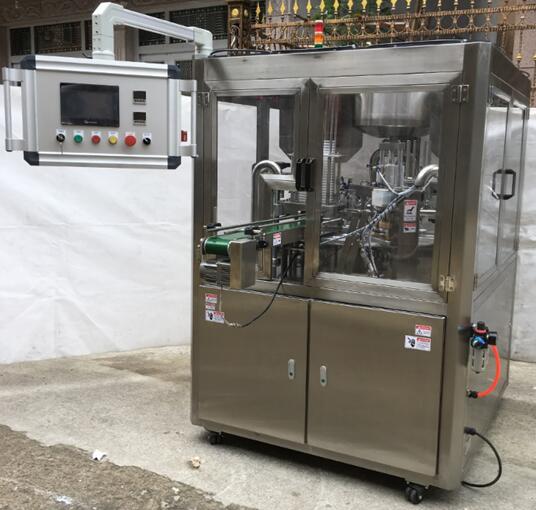

Rotary Cup Filling Sealing Packing Machine
Introduction

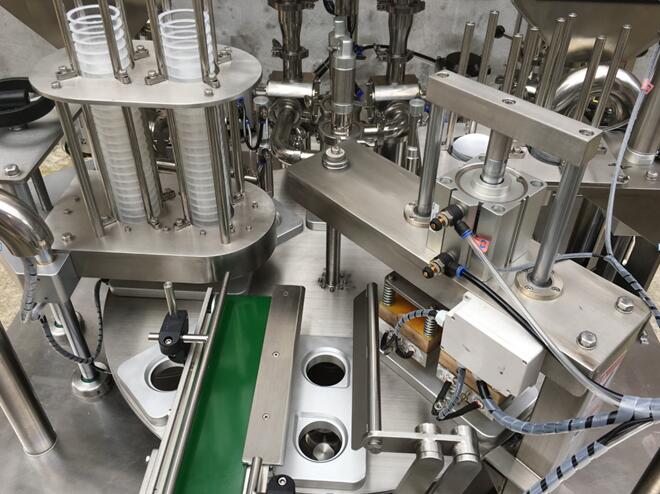

   Fully automatic rotary cup filling & sealing machine can auto loading the empty cups, empty cups detecting, auto quantitative filling product into cup, auto loading the aluminum foil seal lids or auto loading roll plastic film, auto sealing cup or auto sealing cup and cutting film, auto discharging the finish product to conveyor. Base on different mold quantity, its capacity from 1200-4800 cups per hour, suitable for the foods and beverage factory production needs.
Whole machine made by stainless steel 304 and anodizing aluminum, ensure it can running on bad food factory environment which has damp, steam, oil, acidity and salt etc. its body can accept the water rinsing clean.
Using high quality imported electrical parts and pneumatic parts which ensure the stable running in long time, reduce the
 stop and maintenance time.


Parameters:
 Model: MFR02
 Capacity: 2000-3000cups/hour
 Voltage: 1P 220v50hz
 Total power: 2.8kw
 Filling volume: 10-100ml, 50-250ml, 100-500ml can be choose
 Filling error: ≤1%
 Air pressure: 0.6-0.8Mpa
 Air consumption: ≤0.8m3/min
 Machine weight: 850kgs
 Machine size: 1600*1300*1900mm
