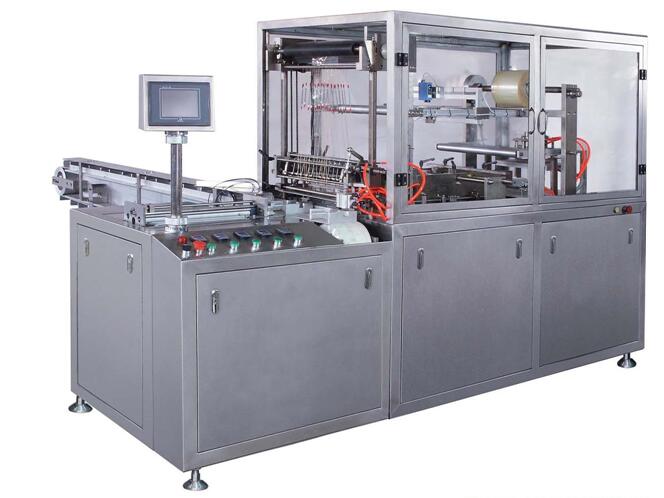

Auto Cellophane Over-wrapping Machine
Publish time 2017-12-15 14:41
Appication:
it applies for overwrap all kinds of cartons,round and square shape. such as bisuilt,cigarette,gift,etc. it will enhance the value of products and prevent from moisture and dusty through overwrapping,
Main Features:
1. Adopting the man-machine interface, PLC control, Failere’s diagnosing software.
2.Adopting the servo motor to feed film. The speed and the length can be adjusted. Using the film is smooth and length accurate.
3. Adopting full cylinder drive, Steady Running, accurately Synchronizing, conveniently adjusting, hard seating.
4. Compact structure ,easy to operation and manipulating. Complete safely device.
Main technical parameters:
Model:SGM-400E
Packaging material(film):OPP,BOPP,PVC
Production capacity:5-30 package/minute
Packaging size (mm):L(50-300)×W(40-220)×H(20-90)mm
Power of supply:AC380V 50HZ 6.5KW
Work Pressure:0.6Mpa
Air consumption:400L/min
Weight:750kg
Outline dimensions (mm):2300×910×1850mm
Size of feed table(mm):1650×320×930mm
1. Adopting the man-machine interface, PLC control, Failere’s diagnosing software.
2.Adopting the servo motor to feed film. The speed and the length can be adjusted. Using the film is smooth and length accurate.
3. Adopting full cylinder drive, Steady Running, accurately Synchronizing, conveniently adjusting, hard seating.
4. Compact structure ,easy to operation and manipulating. Complete safely device.
Main technical parameters:
Model:SGM-400E
Packaging material(film):OPP,BOPP,PVC
Production capacity:5-30 package/minute
Packaging size (mm):L(50-300)×W(40-220)×H(20-90)mm
Power of supply:AC380V 50HZ 6.5KW
Work Pressure:0.6Mpa
Air consumption:400L/min
Weight:750kg
Outline dimensions (mm):2300×910×1850mm
Size of feed table(mm):1650×320×930mm
