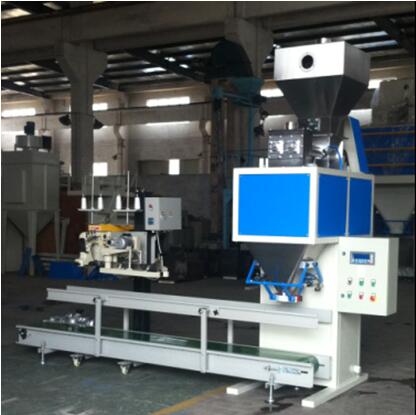

Semiautomatic Powder Packing Machine
Publish time 2017-12-15 10:42
Application
This machine is especially designed for packing 0.5-50kg powder, such as feed, fertilizers, rubber powder, PE powder, etc. into open-mouth bags like plastic woven bags, Kraft bags, sacks, paper-plastic compound bags and barrels, cartons.
Working Principle
First, the bag need be applied manually to the filling spout and the filling process is started by a push-button. Your material will firstly go to the hopper and then be filled into the bags via the screw feeding parts. The filling flow is controlled by the frequency-change screw’s (auger’s) rotating speed. When the bag is filled fully, the bag clamping device will automatically open and the bag will be conveyed to the sewing system for sealing.
Working Process
Manually bag placing → Automatic filling → Automatic weighing → Automatic conveying →Semi Automatic sealing (sewing，heating or weld) → next process
Technical parameters
Part 1:
Weighing Range:25 Kg/bag, customized needs
Precisions:±0.2%FS
Output Capacity:150-200 bags /hour (depending on the material properties, bag sizes and bag mouth sizes)
Power:1.85+1.3 kw
Power Supply:AC220/380V, 50/60Hz, 3 phase；will make as per local Electrical system
Air Power:0.4～0.6 Mpa ( need 170ml, or 0.17 m³ or 8kg air compressor)
Working temperature:-20-40℃
Working humidity:＜95% (no condensate water)
Dimension:3000×700×2800mm, subject to the real machine.
Belt conveyor Dimension:3000*400mm, for reference, subject to the real machine.
Weight:600~750kg, subject to the real machine.
Part 2:
Components:Sewing machine, height-adjustable column;Belt conveyor
Max. Speed:1900rpm
Working Speed:1700rpm
Thickness of Material:Max.8mm
Thread Chain Cutter:Manual Operated
Stitch Range:6.5-11mm
Needle:80800x250#
Thread:Synthetic Fiber Thread
Stitch Type:401
Conveyor size:3000x400x1200(mm)(LxWxH)
Weight:100kg
First, the bag need be applied manually to the filling spout and the filling process is started by a push-button. Your material will firstly go to the hopper and then be filled into the bags via the screw feeding parts. The filling flow is controlled by the frequency-change screw’s (auger’s) rotating speed. When the bag is filled fully, the bag clamping device will automatically open and the bag will be conveyed to the sewing system for sealing.
Working Process
Manually bag placing → Automatic filling → Automatic weighing → Automatic conveying →Semi Automatic sealing (sewing，heating or weld) → next process
Technical parameters
Part 1:
Weighing Range:25 Kg/bag, customized needs
Precisions:±0.2%FS
Output Capacity:150-200 bags /hour (depending on the material properties, bag sizes and bag mouth sizes)
Power:1.85+1.3 kw
Power Supply:AC220/380V, 50/60Hz, 3 phase；will make as per local Electrical system
Air Power:0.4～0.6 Mpa ( need 170ml, or 0.17 m³ or 8kg air compressor)
Working temperature:-20-40℃
Working humidity:＜95% (no condensate water)
Dimension:3000×700×2800mm, subject to the real machine.
Belt conveyor Dimension:3000*400mm, for reference, subject to the real machine.
Weight:600~750kg, subject to the real machine.
Part 2:
Components:Sewing machine, height-adjustable column;Belt conveyor
Max. Speed:1900rpm
Working Speed:1700rpm
Thickness of Material:Max.8mm
Thread Chain Cutter:Manual Operated
Stitch Range:6.5-11mm
Needle:80800x250#
Thread:Synthetic Fiber Thread
Stitch Type:401
Conveyor size:3000x400x1200(mm)(LxWxH)
Weight:100kg
