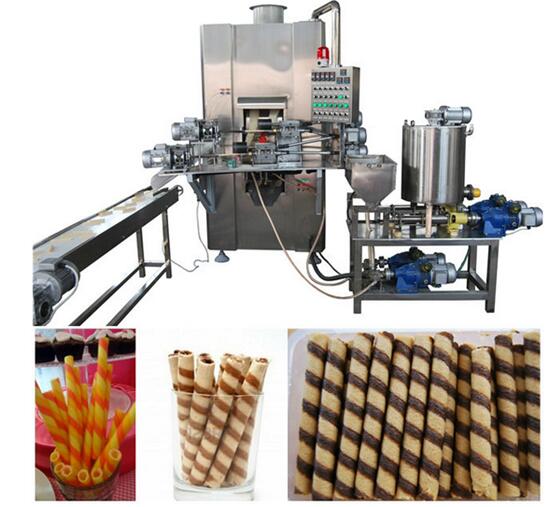

Wafer stick machine
    Publish time 2017-12-15 11:03

Application:
This machine app
ly for producing wafer sticks with single color or double color,the capacity is 50-60kg/h.

Main Technical Parameters

 Model

   Natural Gas Heating

          Electric Heating

 Total power

                    8 KW

              35 KW

 Size

                                3400×1700×2250 (L*W*H mm)

 Gas consumption

    LPG:4.5kg/h   Natural Gas:8-9 m³/h



 Capacity

                                Hollow:25-30kg/h     Filled:56-60kg/h

 Weight

                                                        4000KGS

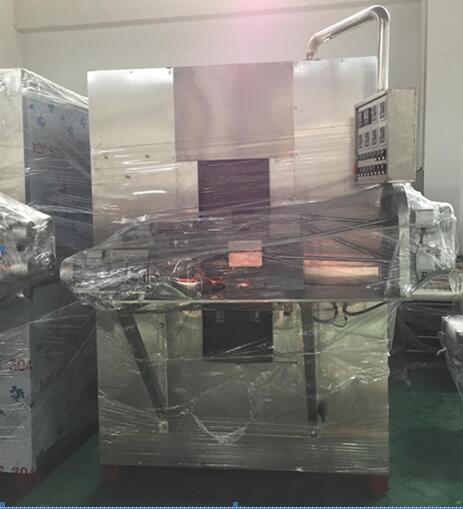

Main components of two head wafer stick machine

1. Mixer.

2. Ball mill machine.

3. Conveyor belt.

4. Slurring feeding and central filling machine.

5. Color box.

6. Oven forming machine.

Advantages

1.    Two dough band and two lines of stick, gain high capacity.

2.    The oven can be baked by gas/electricity/diesel, the heating system adopts automatic ignition technique,

3.    Auto alarm system. After alarm the gas supply will be turned off.

4.    Auto temperature control system. Effectual heat preservation can fully use energy.

5.    A transducer is used to regulate the speed of main motor

6.    The thickness of sheet is adjustable

7.    The length of stick is also changeable.

8.    The diameter of stick is changeable, just to change the winding shaft.

9.    The wafer stick can be partly or fully filled.

Photos of sample Products :


The video clip of machine running :

https://youtu.be/Cck23s7VWtY
